Form and Function

For this project we were tasked with editing and adding onto an existing bridge to account for water traffic passing through a 30' x 40' opening.

Name: Bob Kerrey Pedestrian Bridge
Type: Cable Stay
Location: Missouri River between Omaha, Nebraska, and Council Bluffs, Iowa

Pedestrian Bridge.png

Name: Sydney Harbor Bridge
Type: Arch
Location: Sydney, Australia

Name: Key Bridge
Type: Cantilever
Location: Baltimore, Maryland

Key Bridge.png

Movement Analogies

After finding 5 five household items that have two or more hinges, we selected three. I chose a vice grip, an ice cream scoop and a wine bottle opener. After selecting our three objects we modelled them in 3D to better understand their functions.

Vice Grip

Vixe grip model.png
Vice 1.png

Ice Cream Scoop

Ice Cream Scoop Model.png
Ice Cream Scoop move.png

Wine Bottle Opener

Wine opener model.png
btle 1.png

Preliminary 3x3 Prototype Table

We used the three different household items and combined them with the bridges to make 9 different bridge prototypes.

Selected Model and Bridge

After creating our 3 x 3 table I selected 1 out of the 9 designs.

Views

Southeast view.png

South-East View

Southwest view.png

South-West View

Northwest View.png

North-West View

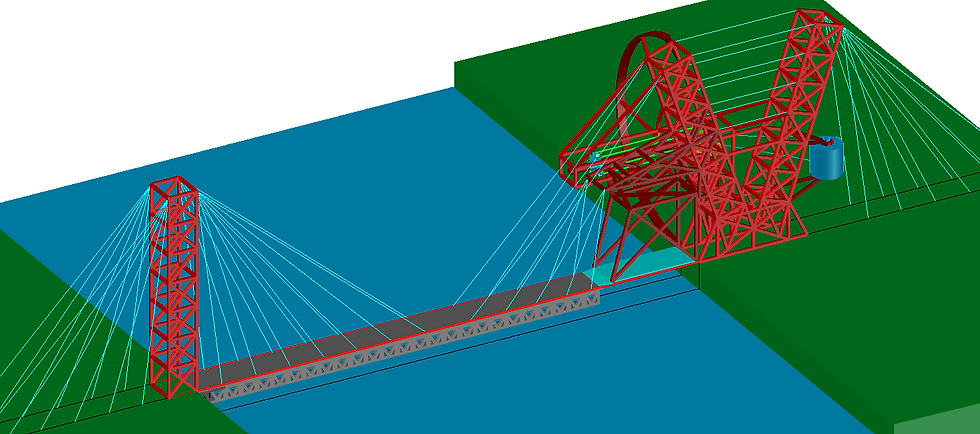

Northeast View.png

North-East View

Building Process

Progress gif.gif

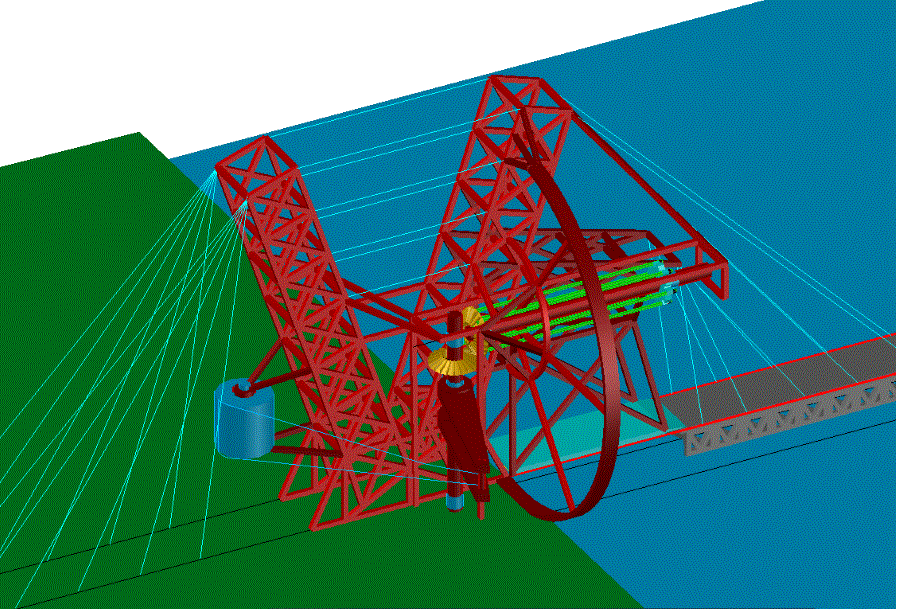

Final Design

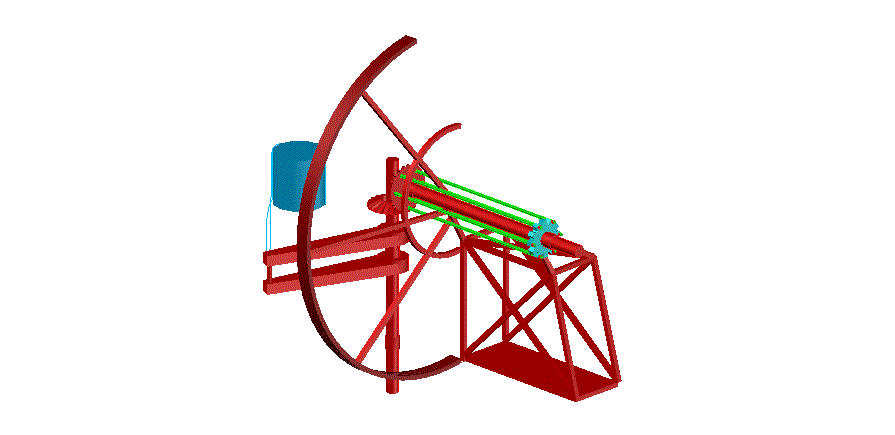

function gif.gif
Movement Gif revised 2.gif
